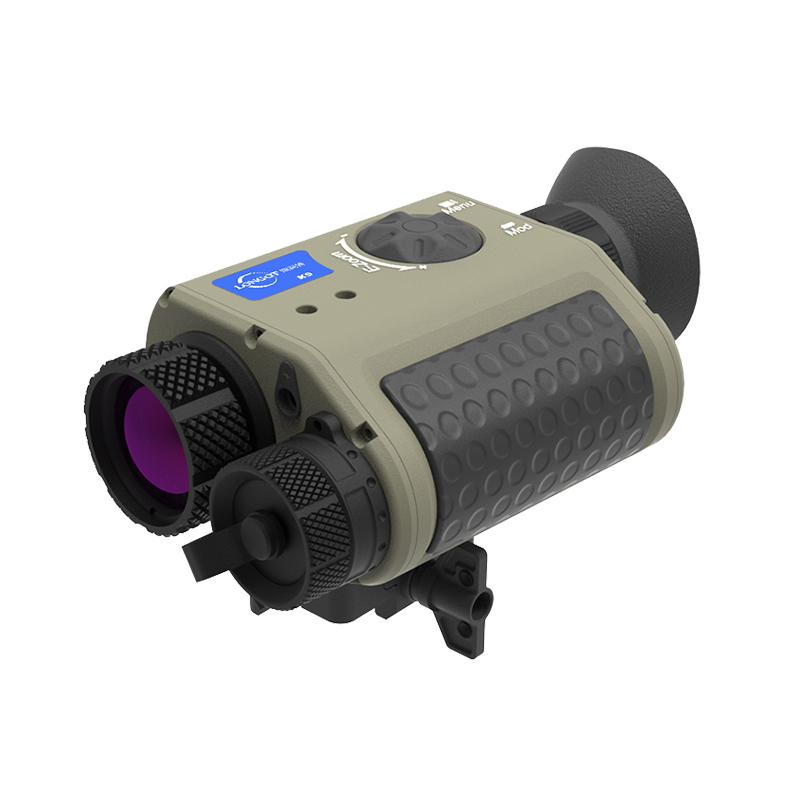

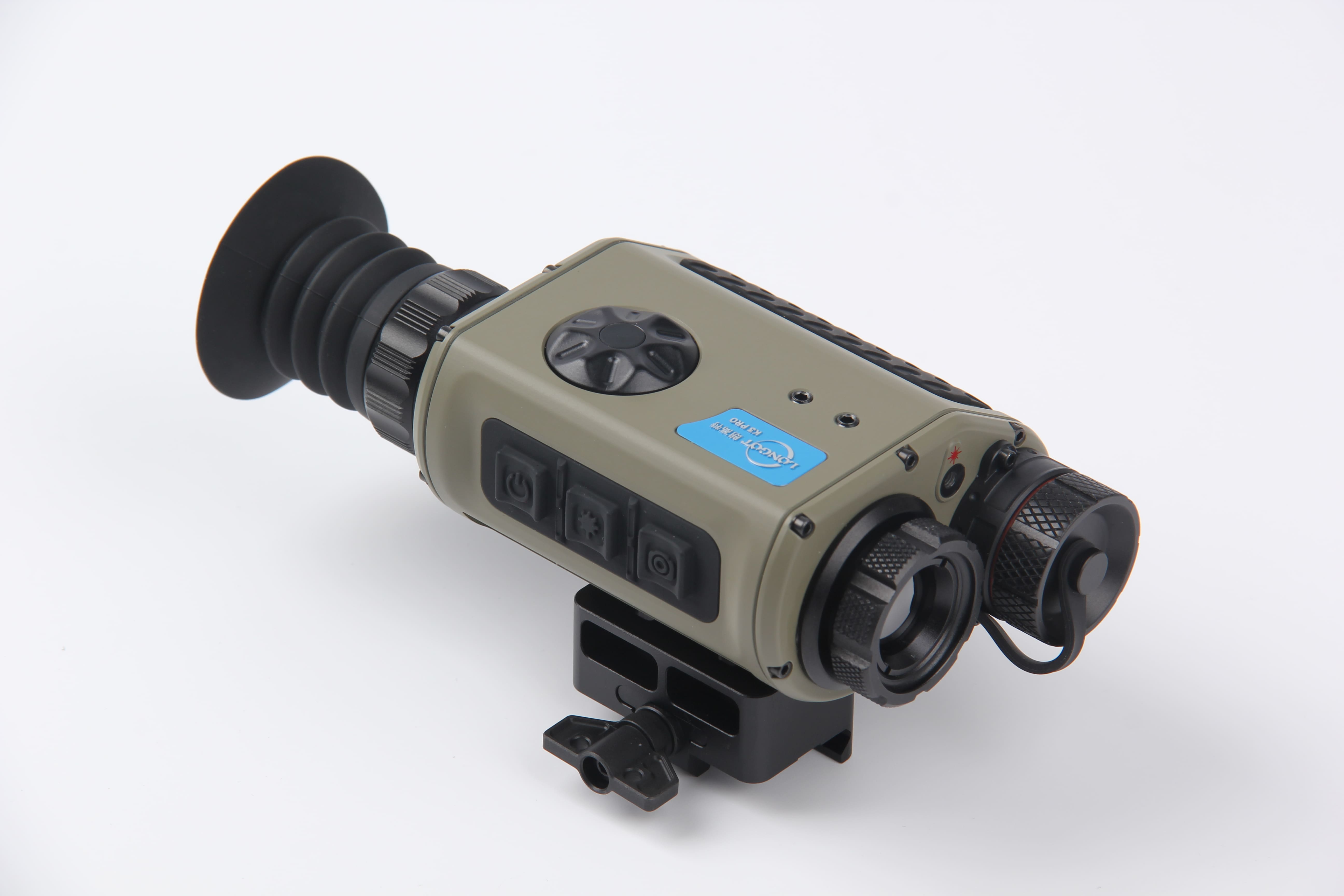

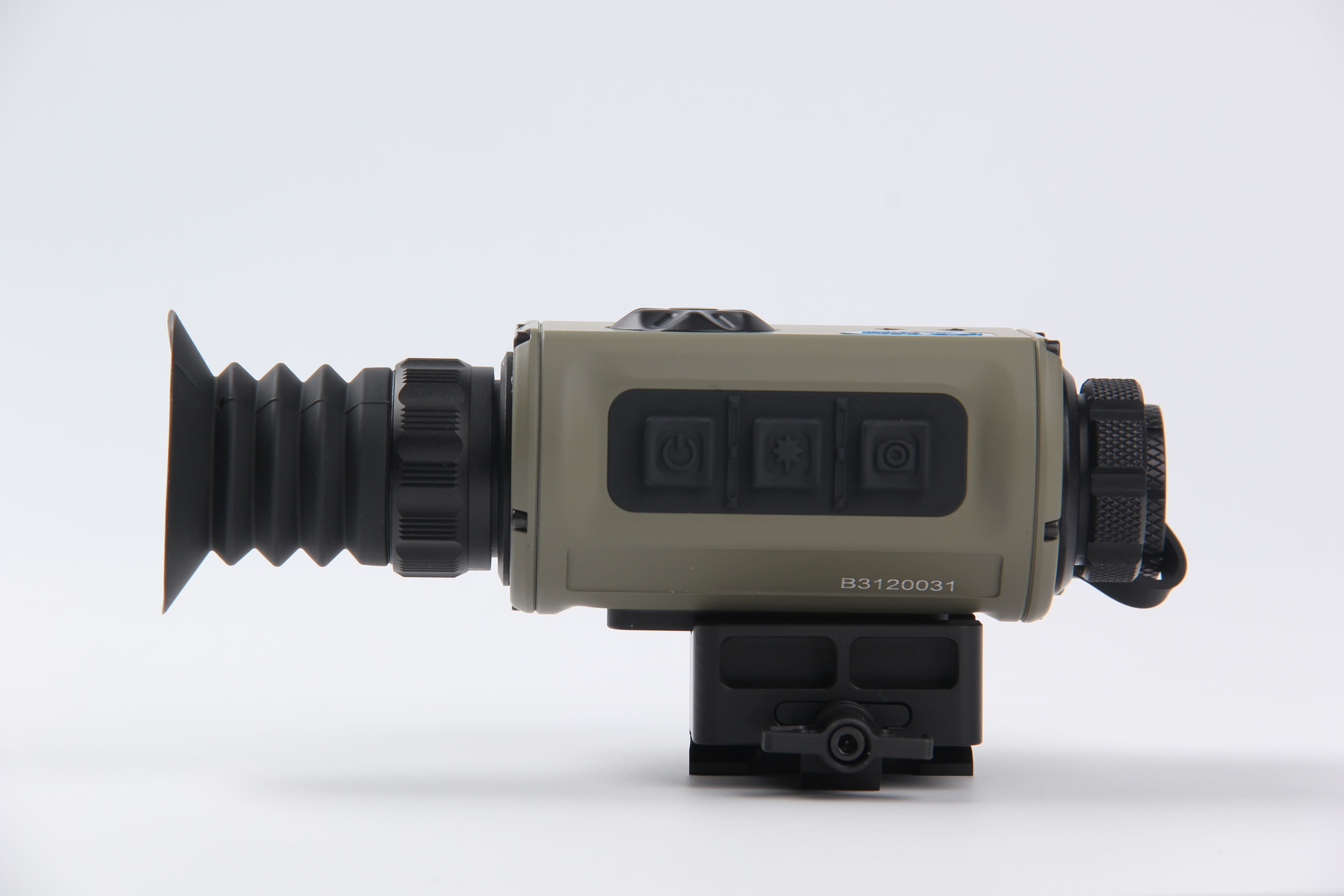

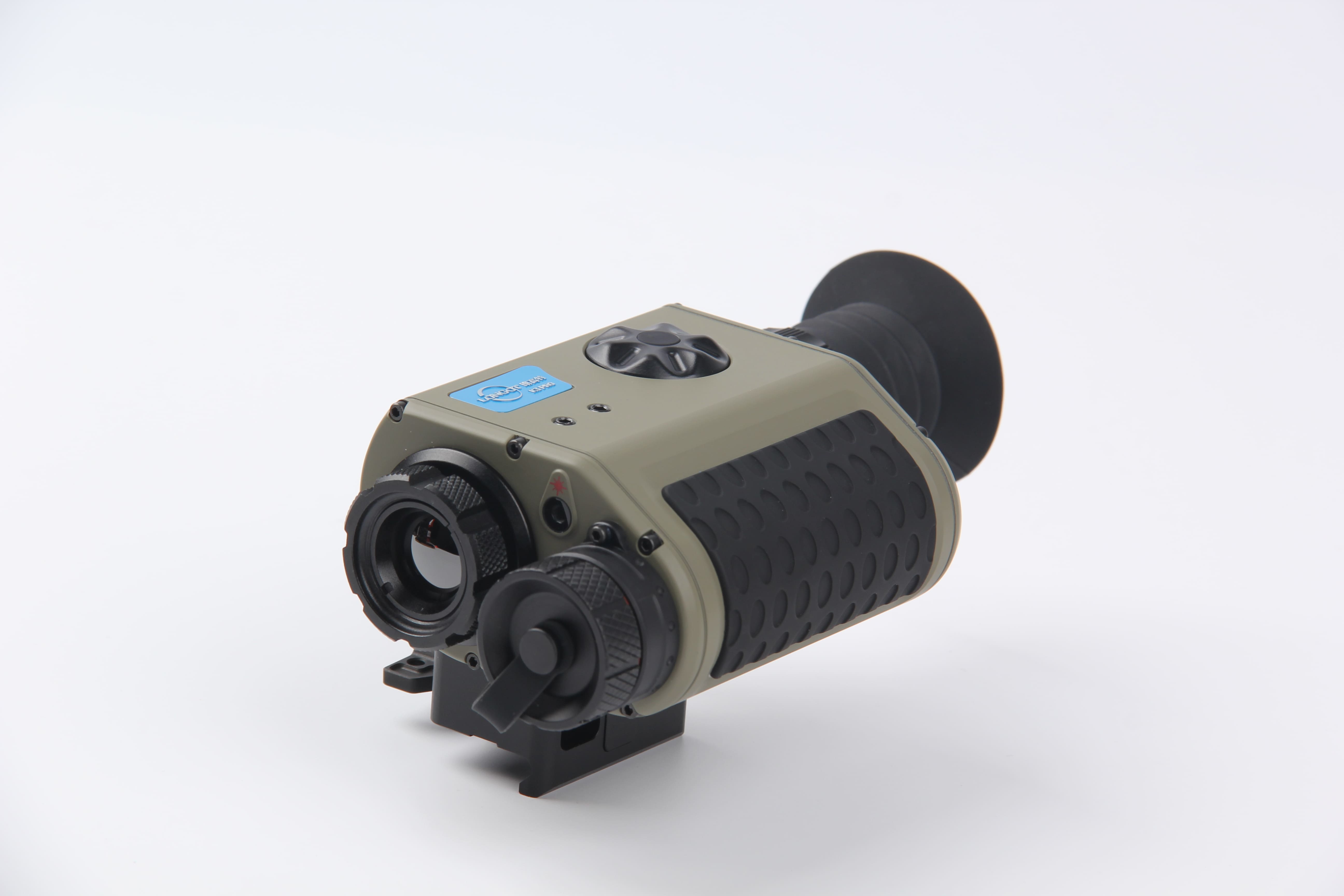

Longot K3 Pro Multifunctional Thermal Imager
Longot K3 Pro Multifunctional Thermal Imager

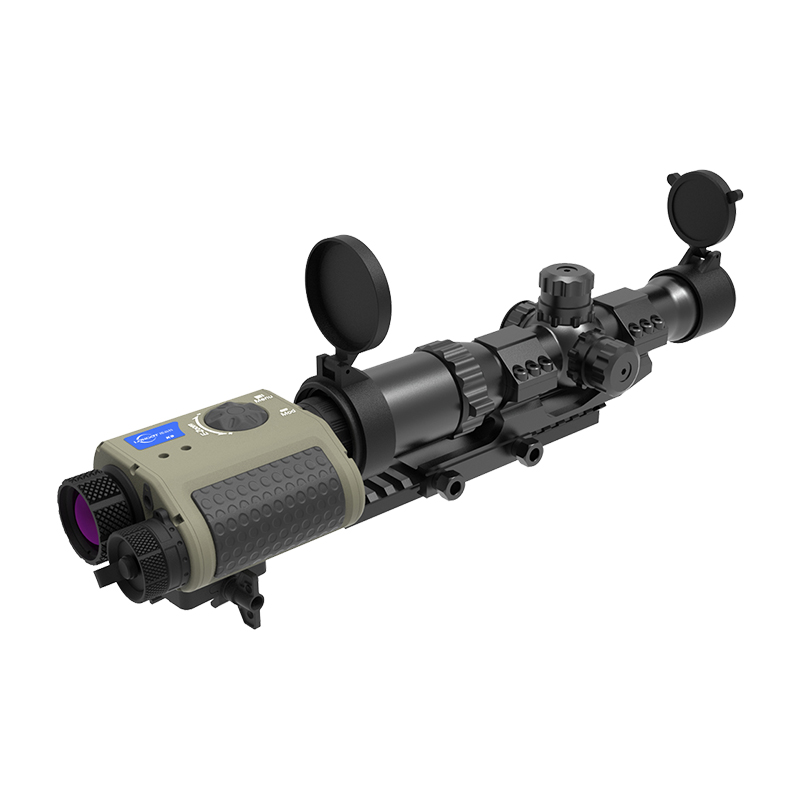

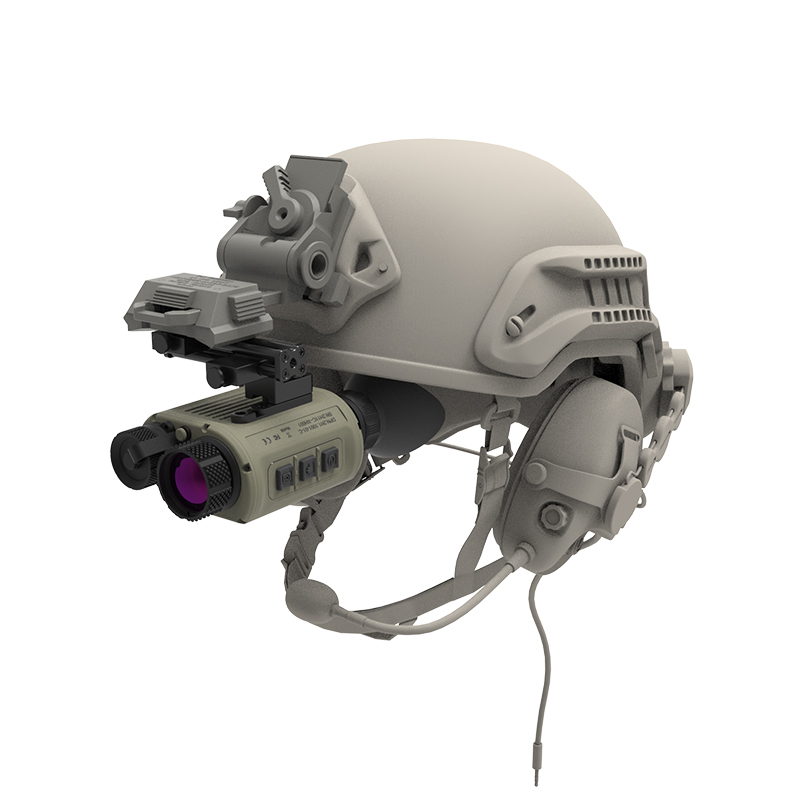

Thermal Imager / Thermal Sights / Thermal Clip-on / Thermal With Headmount
·The pixel size is 12 μm.
·Resolution 384x288
·1024x768 OLED display screen
·16mm lens F1.0 aperture
·16.3°x12.3° field of view
·6 image modes
·4 scene modes
·Support for electronic compasses
·Support photo and video &Wi-Fi
·8h strong battery life
·7 differentiation patterns
·Support for motion sensors
·Support for laser indication
·Detection distance is 1500m.
·The pixel size is 12 μm.
·Resolution 384x288
·1024x768 OLED display screen
·16mm lens F1.0 aperture
·16.3°x12.3° field of view
·6 image modes
·4 scene modes
·Support for electronic compasses
·Support photo and video &Wi-Fi
·8h strong battery life
·7 differentiation patterns
·Support for motion sensors
·Support for laser indication
·Detection distance is 1500m.
Specification
Model | K3 Pro |
Pixel Pitch,μm | 12 |
Resolution | 384x288 |
Frame Rate,Hz | 50 |
Response wave band | 8~14μm |
Display,OLED | 1024x768 |
Focal Length of Objective Lens | 16mm F=1.0 |
FOV | 16.3°x12.3° |
Magnification | 1x |
Diopter Adjustment | -5~+2 |
Exit Pupil Diameter | 12mm |
Exit Pupil Distance | 20mm |
Polarity | Black heat, White heat, Red heat, Rouge, Colorl, Ghost |
Mode | Outdoor, Arctic, Rainforest. Bird, Observation |
Digital Zoom | 1-4x |
Digital Compass | Azimuth,Pitch,Roll |
Wi-Fi Image Transmission | Support |
Image/Video Capture | Support |
Battery | 1x18650（3.7V） |
Max. Battery Life | ＞8h |
Reticle type | 7 Multiple modes |
Reticle color | White/Black/Red/Invert Colors |
Motion sensor | Support |
Laser Pointer | Support |
Target type | 1500m |
Weight (w/o battery) | 356g（＜318g） |
Dimension(mm) | 125*72*44mm |
Mounting Type | Handheld,head,thermal scope,clip-on thermal scope |
Waterproof | IP67 |
Operating Temperature Range | -20℃~+40℃ /-40℃~+40℃(optional) |
Shock | 3000J |
| Vibration | 6.06G |
|
|
