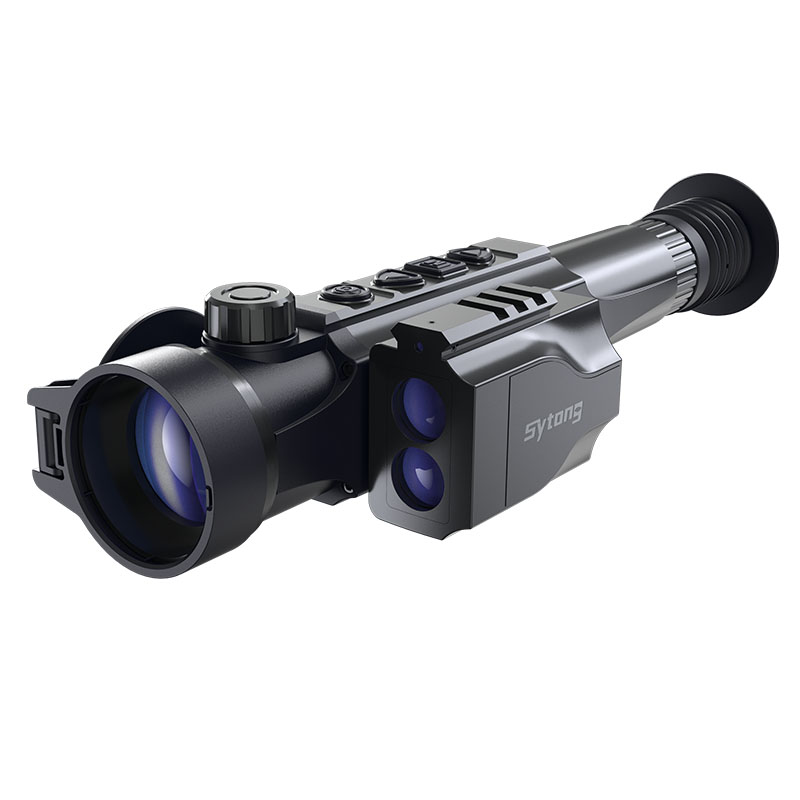

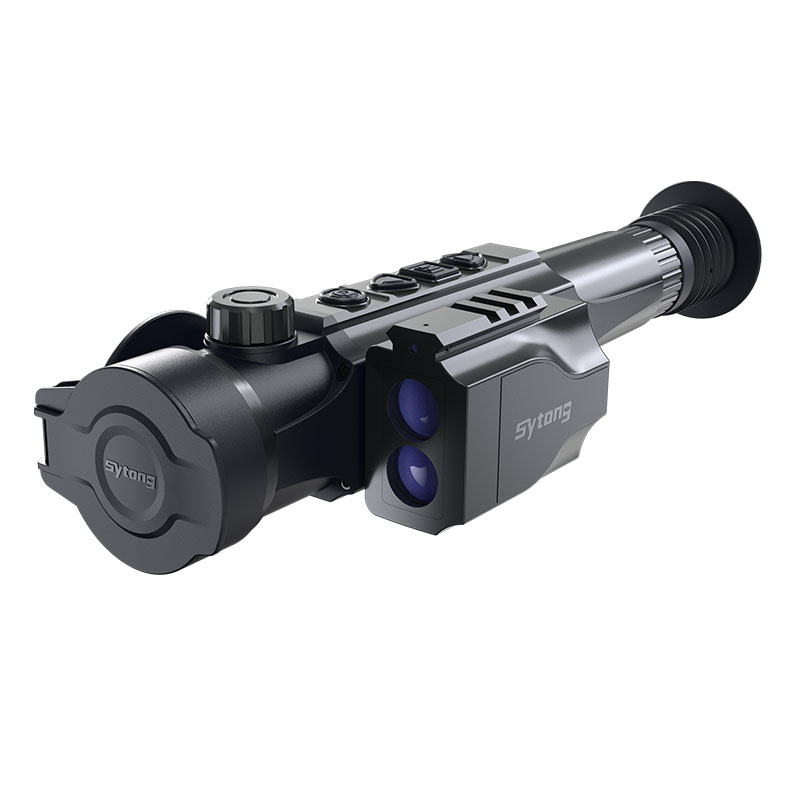

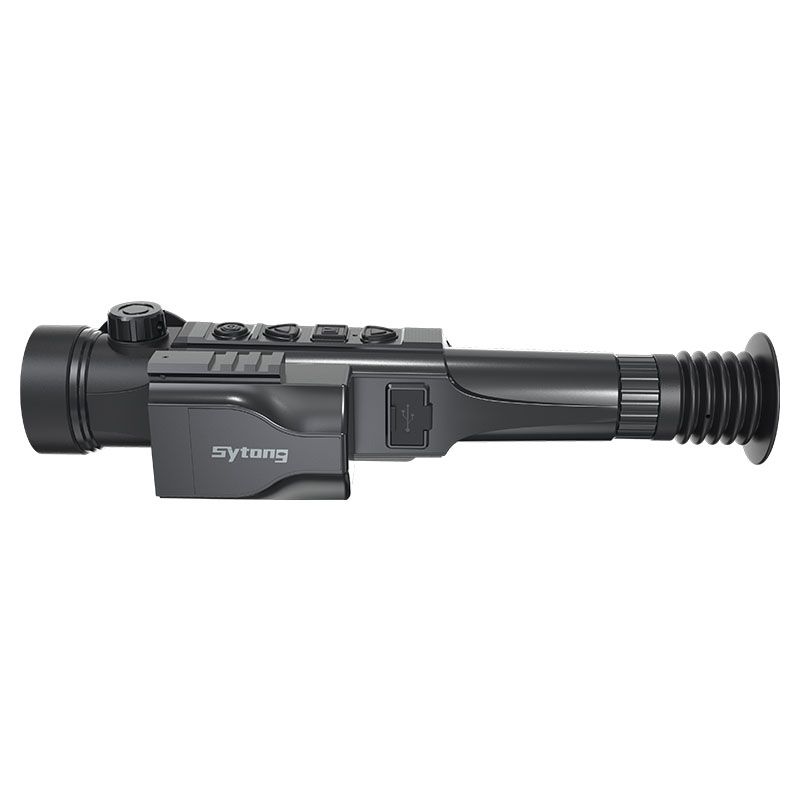

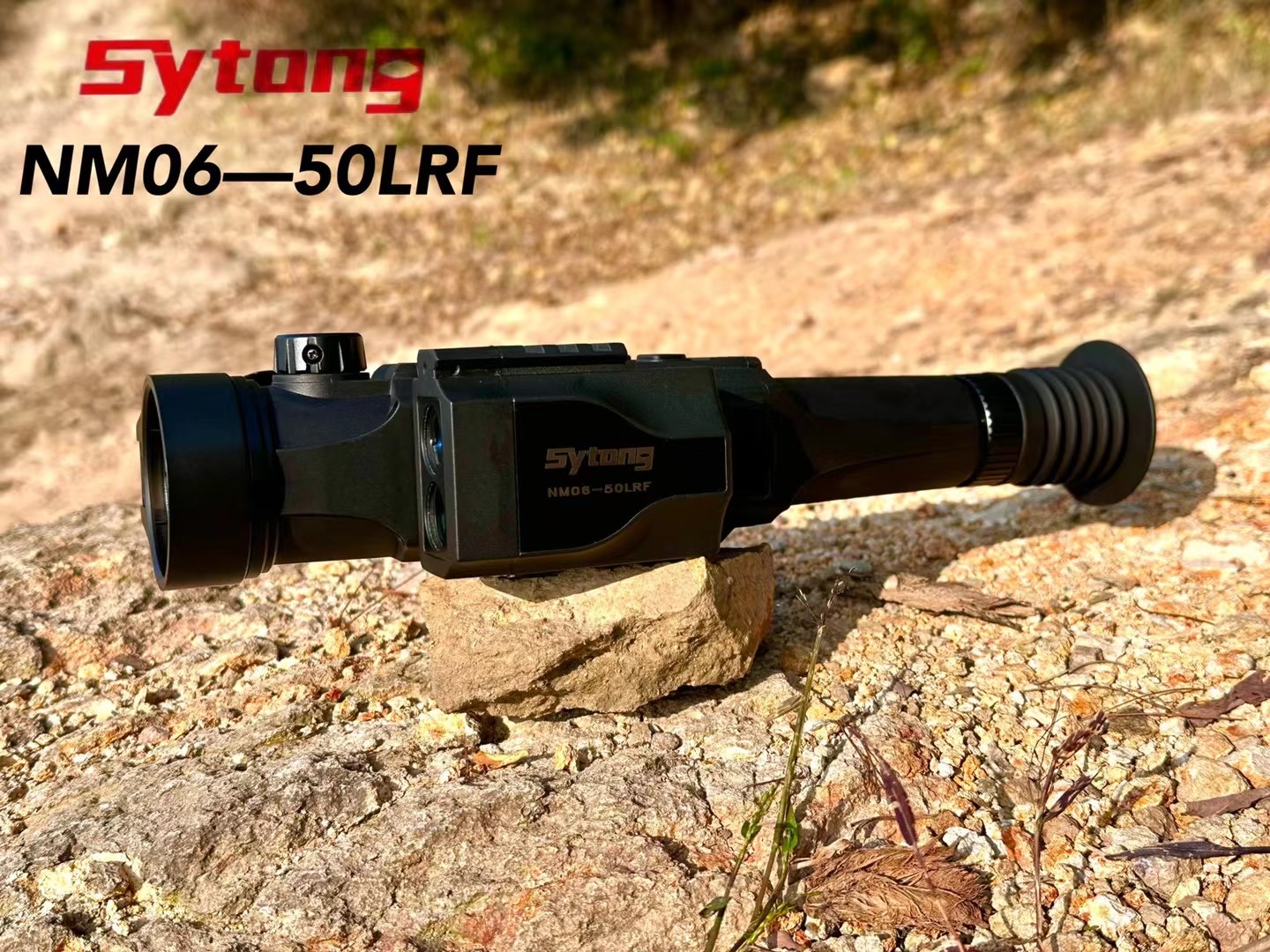

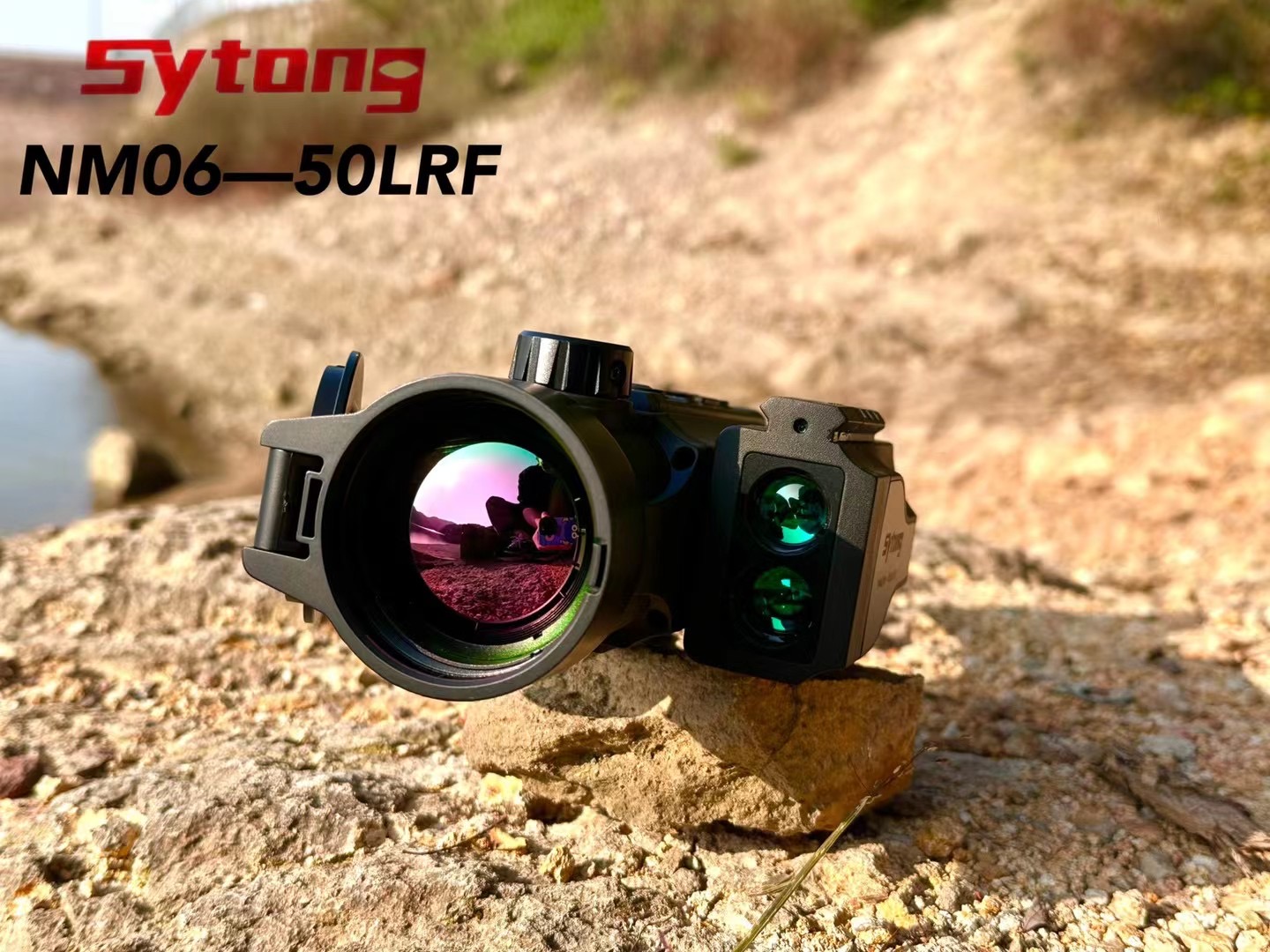

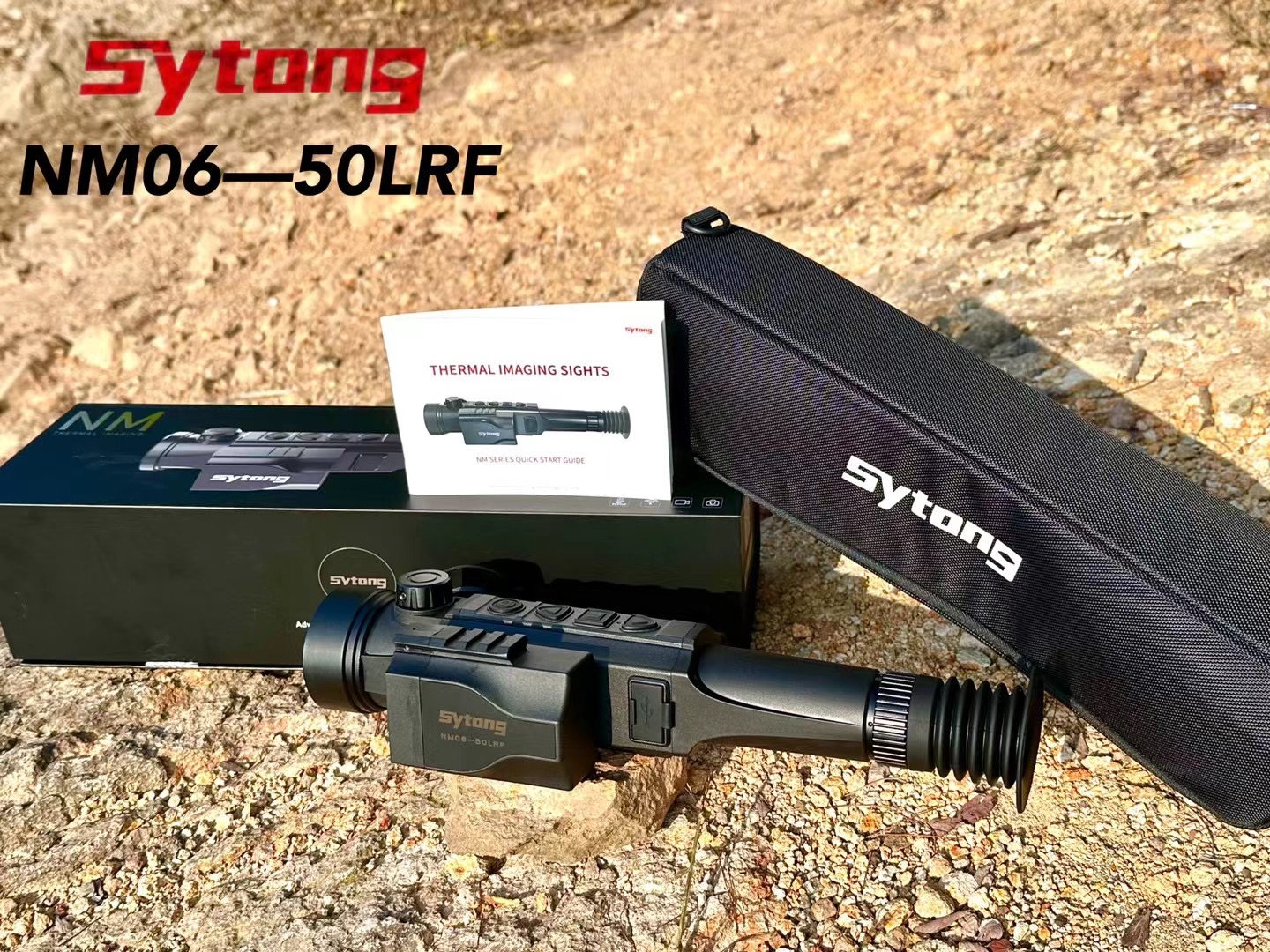

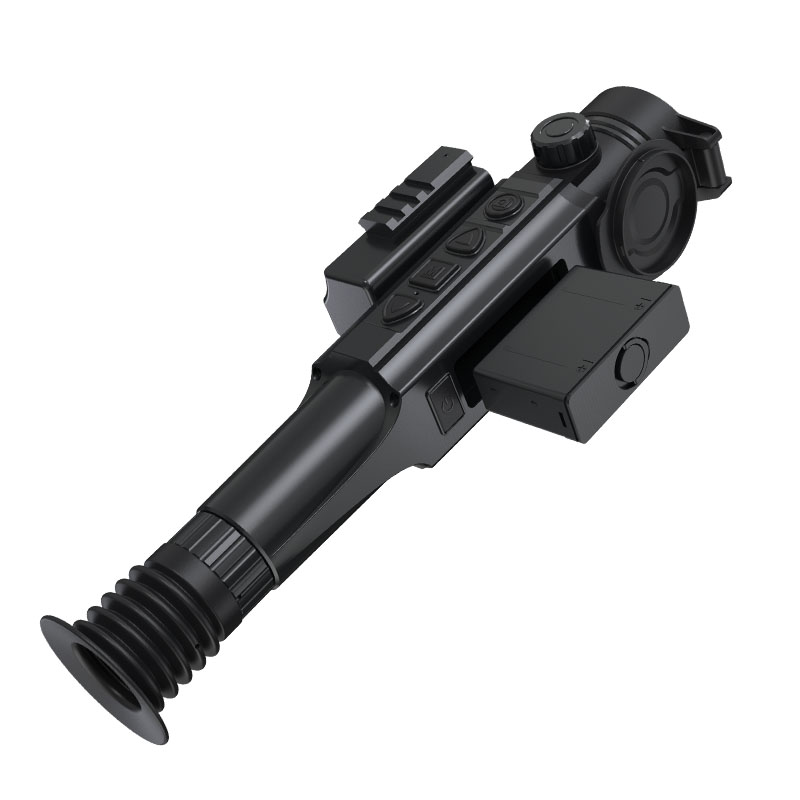

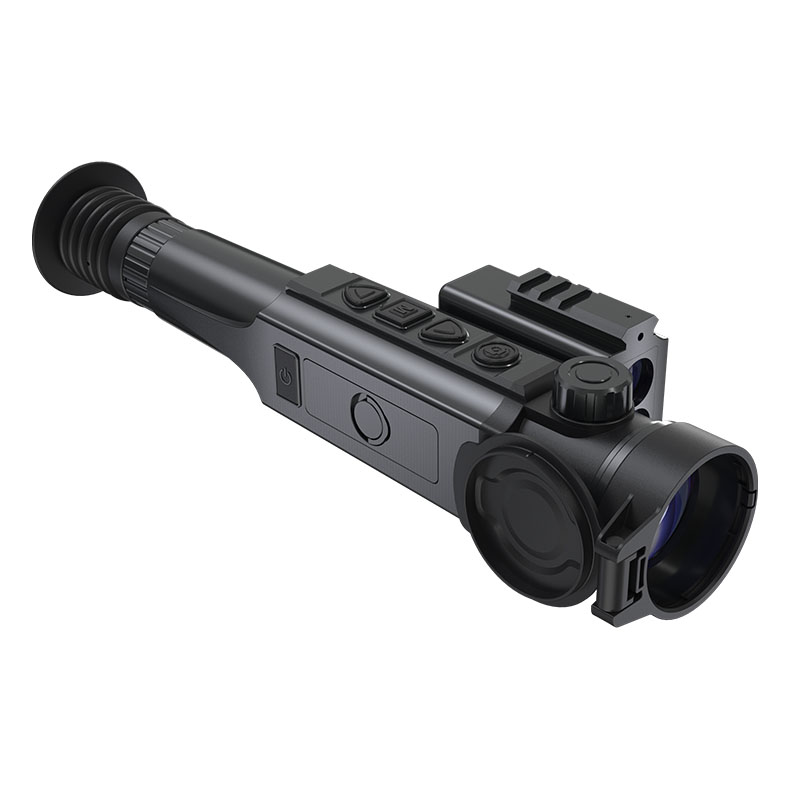

Sytong NM06-50LRF Thermal Imaging Scope

DESCRIPTION

SYTONG NM06-50LRF THERMAL RIFLE SCOPE WITH 2000M RANGE FINDER AND BALLISTICS

The Sytong NM06-50LRF features a high resolution 640×512, 12µm, sub 25 NETD sensor and is available in a 50mm /F1.0 aperture.

SPECIFICATIONS:

• SENSOR

Type: Uncooled

Frame Rate: 50 Hz

NETD: <25mk

Resolution: 640×512

Pixel Size: 12µm

OPTICAL CHARACTERISTICS

Objective Lens:50mm / F1.0

Digital Zoom: 1x / 2x / 4x / 8x

Dioptre Adjustment: +5 / -5D

Magnification: 2.5x

Eye Relief: 50mm

Focus Range: 5m – ∞

Detection Range (Human Size): 2500m

F.O.V: 8.8°x6.6°

• DISPLAY

Type / Resolution: 0.39″ / OLED / 1024×768

Operating Mode: White Hot, Sky Mode, Black Hot, Red Hot, Fusion

RANGEFINDER

Max. Measuring Range: 2000m

Measuring Accuracy: ± 1m

Wavelength:905nm

• OPERATIONAL CHARACTERISTICS

3D Gyroscope: Yes

Hot Trace: Yes

Battery: Li-Ion Battery Pack / 6000mAh / 3.7v

Waterproof Rating: IP67

Operating Temperature: -20°C – +50°C

Operating Time at 22°C: 9 Hours

Power Supply: 3-4.2V

External Power Supply: 5V (USB)

Dimensions: 285mm x 90mm x 75mm

Weight (Without Battery): 1030g

Max Recoil Handling: 10,000 J

• VIDEO RECORDER

Video / Photo Resolution: 1024×768

Supported Memory Type: Built-in 32G Memory Card

Video / Photo Format: .mp4 / .jpg

• WIFI CHANNEL

Frequency: 2.4GHz

Line of Sight Reception Range: 15m
