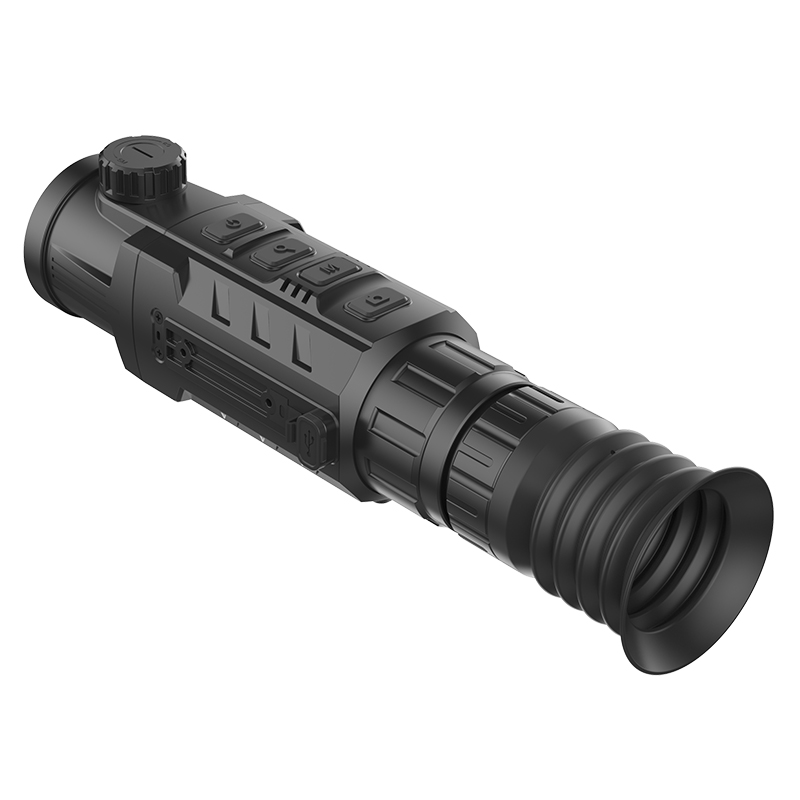

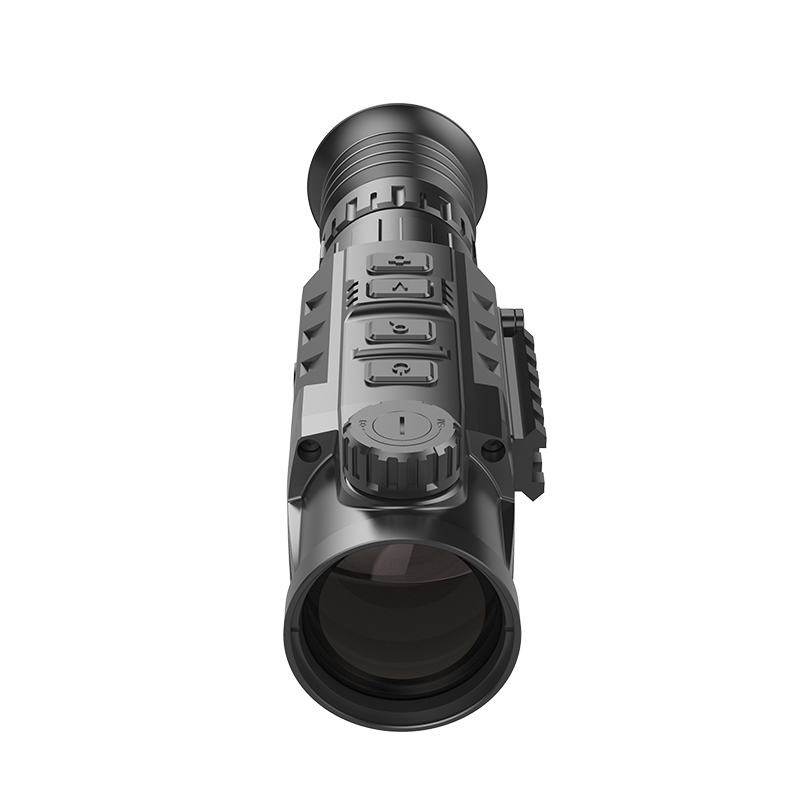

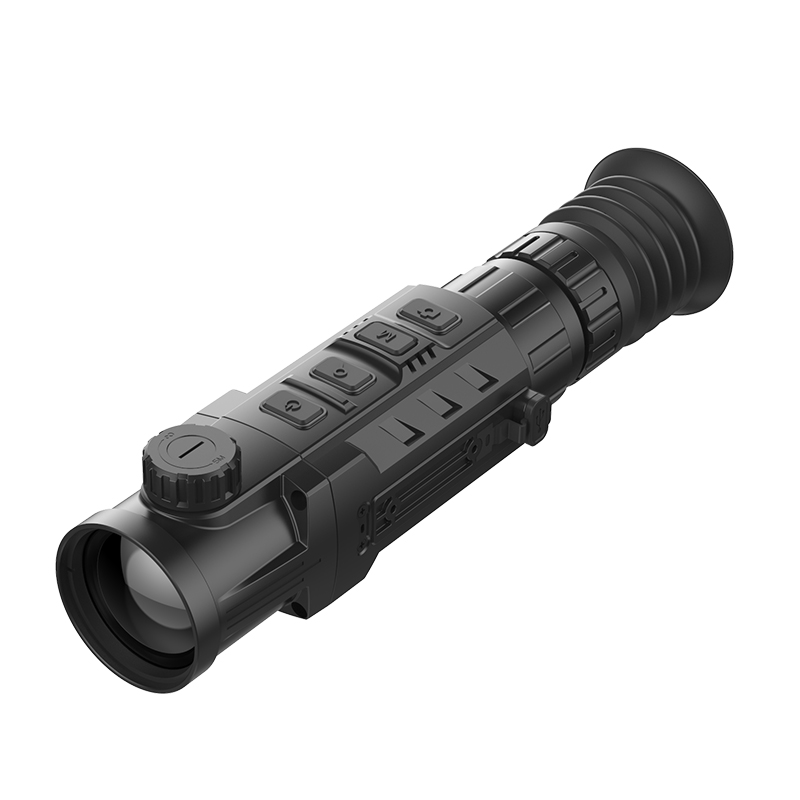

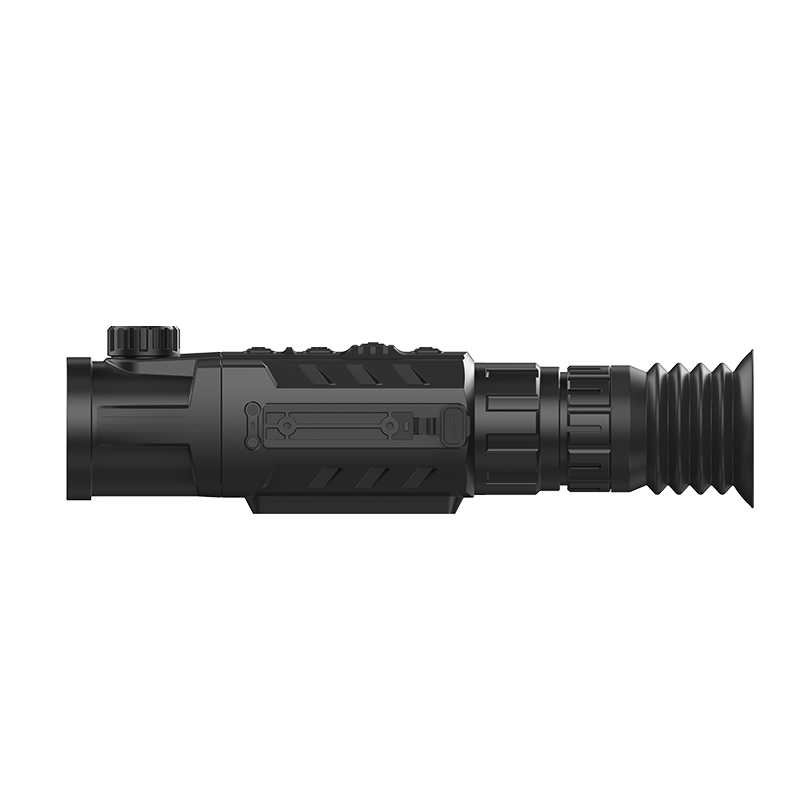

Longot TL650 THERMAL IMAGER
Longot TL650 THERMAL IMAGER
·12μm detector
·50mm objective len
·OLED display。
·External laser rangefinder。
·2500m detective range。
·IP67 waterproof
Specification
Model | TL650 |
Type | Uncoole |
Resolution, pixels | 640x512 |
Pixel Size, | 12μm |
NETD | ≤20mk |
Frame rate | 60Hz |
Objective Lens | F42mm /1.0 |
Field of View, degrees | 8.8×7.0° |
Magnification, × | 3~12 |
E-zoom, × | 1 / 2 / 3 / 4 |
Eye relief, mm | 55 |
Exit pupil diameter, mm | 6 |
Detection Range, m (Target size: 1.7mx0.5m, P(n)=99%) | 2594 |
Display type | OLED |
Resolutio | 1024×768 |
Size, inch | 0.39 |
Battery Type / Capacity / Output Voltage | Li-Ion Battery Pack IBP-1 / 4400mAh / DC3.7V |
Power Supply | 3V~4.2V |
External Power Supply | 5V (Type C USB) |
Max. Operating Time (at t=22℃), h | 6 |
Max. Recoil Power on Rifled Weapon, g/s² | 1000 |
Degree of protection, IP code | IP67 |
Amount of built-in memory, Gb | 32 |
Operating Temperature Range, ℃ | -20~+50 |
Laser Rangefinder | Optional |
Weight, g | 860 |
Dimension, mm | 250×61×58 |
Wavelength, nm | 905 |
Max. Measuring Range, m/y | 1000/1094 |
Measurement Accuracy, m | ±1 |
|
|
